Charging cables & connectors
EV Charging Cables & Connectors
Choose connector heads, cable assemblies and mating components by their supply form. A regional description or current marking does not replace a confirmed interface drawing.
A clear boundary between components
Connector head + cable
The listed cable-assembly options use 4.5 m cables with white connector housings. Confirm termination and the mating interface for your equipment.
Mating connector or inlet
Specify whether you need a cable-side connector or an equipment-side mating part. They serve different assembly roles.
Your equipment drawing
Bring the mating-interface details and termination requirements. Confirm mechanical fit and wiring documentation before assembly.
Compare cable-assembly descriptions
Scroll to compare all columns. Focus the table to use the arrow keys.
| Configuration | Supply form (source name) | Charging type (source name) | Cable length (source name) | Colour | Regional label (source text) | Current marking (source name) | Phase (source name) |
|---|---|---|---|---|---|---|---|
| Cable configuration 1 | Connector head + cable | AC | 4.5 m | White | European label (source text) | 16 A | — |
| Cable configuration 2 | Connector head + cable | AC | 4.5 m | White | European label (source text) | 32 A | — |
| Cable configuration 3 | Connector head + cable | AC | 4.5 m | White | European label (source text) | 16 A | Three-phase |
| Cable configuration 4 | Connector head + cable | AC | 4.5 m | White | European label (source text) | 32 A | Three-phase |
| Cable configuration 5 | Connector head + cable | AC | 4.5 m | White | US label (source text) | 16 A | — |
| Cable configuration 6 | Connector head + cable | AC | 4.5 m | White | US label (source text) | — | — |
| Cable configuration 7 | Connector head + cable | AC | 4.5 m | White | US label (source text) | 48 A | — |
Current markings and regional labels above reproduce the selected option descriptions. They are not an engineering-rated-current or standards-compliance declaration. A dash means no value is listed for that option.

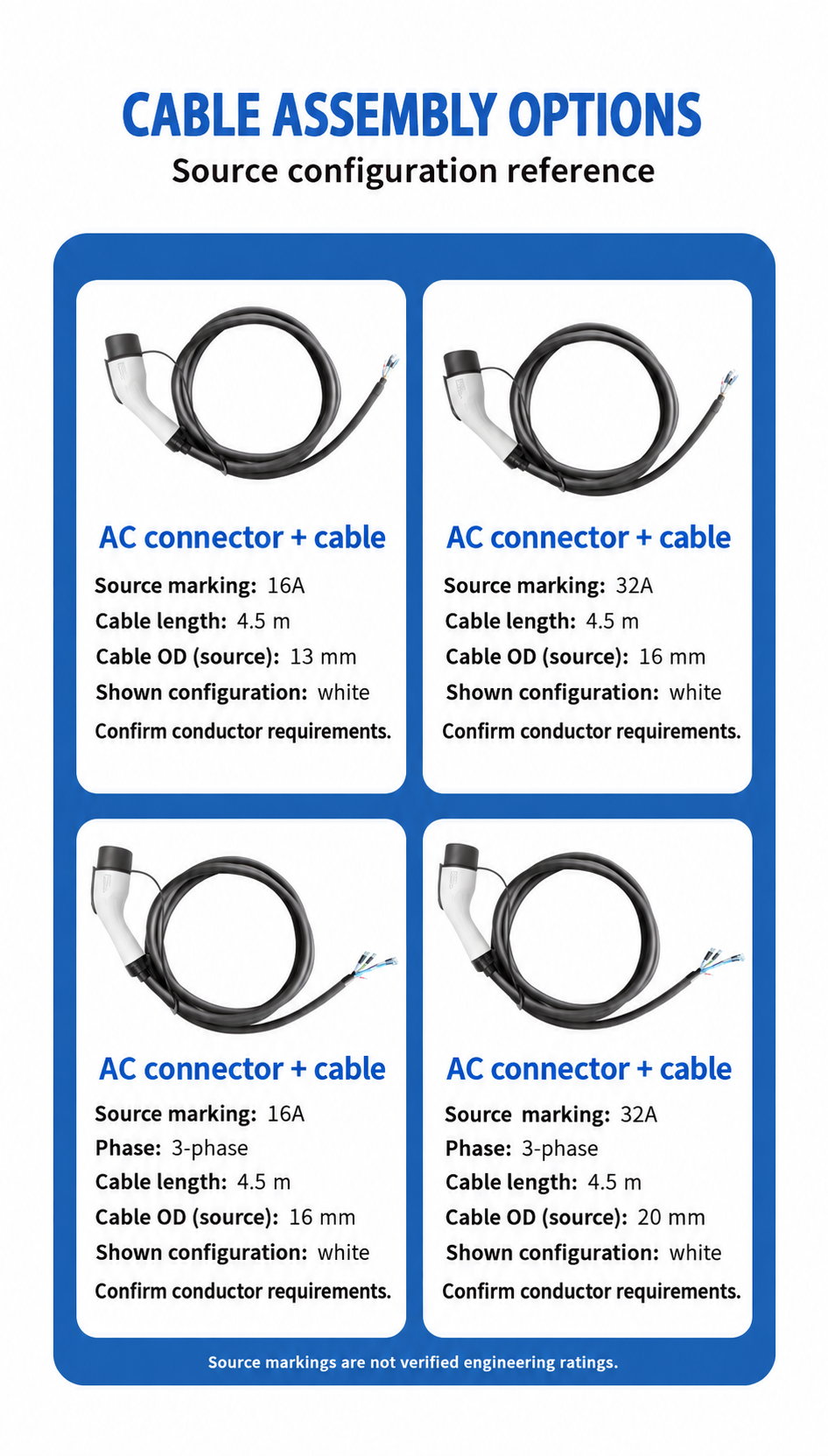

Four source configuration cards · separate assembly summary
Read this four-card cable-assembly overview separately from the configuration table above. Specify the relevant source card and assembly requirements in your enquiry.
View full-resolution image
Scroll within the image area to inspect the complete illustration and its notes.
Four source configuration cards
Read these source descriptions with the configuration illustration. Confirm the exact configuration before ordering.
Source configuration summary. Read with the four-card source-text companion; confirm the exact configuration before ordering.
Upper left — source card 1
| Source description | Value |
|---|---|
| Regional designation (source label) | Chinese national-standard designation |
| Assembly description (source) | AC connector + 4.5 m cable |
| Current marking (source name) | 16 A |
| Copper conductor cross-section (source) | 2.5 mm² copper conductor |
| Cable composition (source notation) | 3*2.5+1*0.75 |
| Connector colours listed in source | Black / white |
| Cable OD (source) | 13 mm |
| Cable length stated within assembly description | 4.5 m |
| Phase (source) | Not stated in the source; confirm the requirement. |
Upper right — source card 2
| Source description | Value |
|---|---|
| Regional designation (source label) | Chinese national-standard designation |
| Assembly description (source) | AC connector + 4.5 m cable |
| Current marking (source name) | 32 A |
| Copper conductor cross-section (source) | 6 mm² copper conductor |
| Cable composition (source notation) | 3*6+1*0.75 |
| Connector colours listed in source | Black / white |
| Cable OD (source) | 16 mm |
| Cable length stated within assembly description | 4.5 m |
| Phase (source) | Not stated in the source; confirm the requirement. |
Lower left — source card 3
| Source description | Value |
|---|---|
| Regional designation (source label) | Chinese national-standard designation |
| Assembly description (source) | AC connector + 4.5 m cable |
| Current marking (source name) | 16 A |
| Copper conductor cross-section (source) | 2.5 mm² copper conductor |
| Cable composition (source notation) | 5*2.5+1*0.75 |
| Connector colours listed in source | Black / white |
| Cable OD (source) | 16 mm |
| Cable length stated within assembly description | 4.5 m |
| Phase (source) | 3-phase |
Lower right — source card 4
| Source description | Value |
|---|---|
| Regional designation (source label) | Chinese national-standard designation |
| Assembly description (source) | AC connector + 4.5 m cable |
| Current marking (source name) | 32 A |
| Copper conductor cross-section (source) | 6 mm² copper conductor |
| Cable composition (source notation) | 5*6+1*0.75 |
| Connector colours listed in source | Black / white |
| Cable OD (source) | 20 mm |
| Cable length stated within assembly description | 4.5 m |
| Phase (source) | 3-phase |
- Source markings, conductor cross-sections, cable composition and outside diameters are source descriptions, not verified engineering ratings.
- The source uses a Chinese national-standard designation; no standard number or certification is stated here.
- The upper cards do not state phase. Only the two lower cards state 3-phase.
- Black / white are colours listed in the source. Confirm the colour supplied for the quoted configuration.
- 4.5 m refers to cable length, not the total connector-and-cable assembly size.
- Cable-composition notation is reproduced as written; conductor roles and ampacity require confirmation.
From a cable request to an agreed sample
- Supply form and mating-interface description.
- Cable length, colour and intended termination.
- Equipment application and destination market.
- Quantity, branding and required technical documents.
Before you order
Does “European label” establish a Type 2 engineering specification?
No. It is a source option description. Confirm the actual interface and technical documents for the required assembly.
Can a current marking be used as a tested rating?
Not by itself. Request the specification and evaluation information for the exact assembly.
Can cable and connector requirements be customized?
Share the required length, termination and connector details. The feasible scope and sample terms are reviewed by project.
