Direction-specific DC adapter
CCS2 to CHAdeMO DC Charging Adapter
Discuss a CCS2 charging-station connection for a vehicle with a CHAdeMO inlet. Confirm the vehicle version and charging-station combination before sample evaluation.

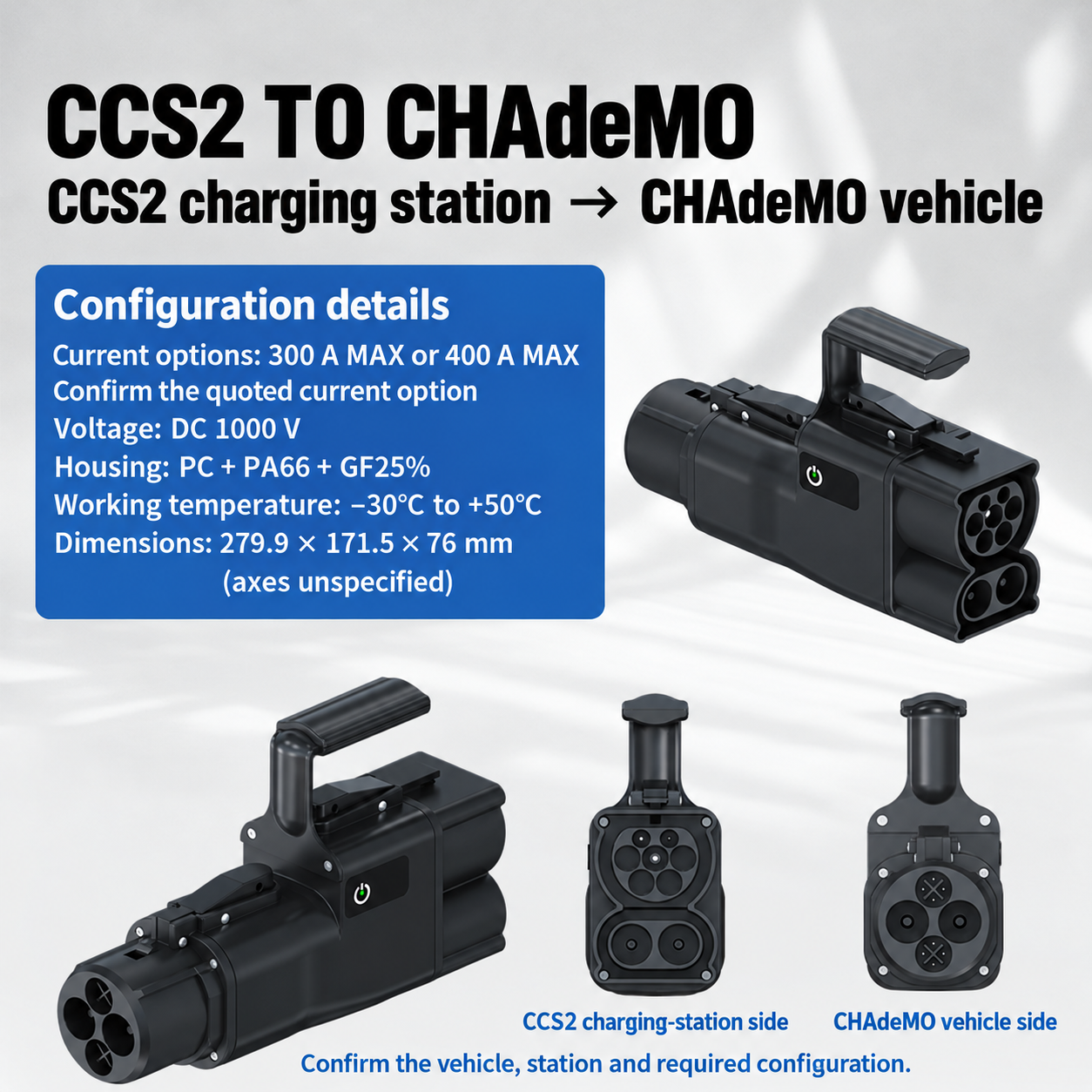

CCS2 to CHAdeMO: source configuration overview
Configuration 6253726939486
- Charging type
- DC
- Charging-station connector → vehicle inlet
- CCS2 charging station → CHAdeMO vehicle
- Voltage (source-stated)
- DC 1000 V
- Current options (source-stated)
- 300 A MAX or 400 A MAX — confirm the quoted option
- Housing material (source-stated)
- PC + PA66 + GF25%
- Working temperature (source-stated)
- −30°C to +50°C
- Dimensions
- 279.9 × 171.5 × 76 mm (source-stated; axes unspecified)
These are source-listed descriptions for this configuration, not an engineering or compatibility approval. Current options must be agreed in the quotation; they do not imply a default 400 A version or a continuous-current guarantee. Confirm the quoted version, station and vehicle before evaluation.
Station side → vehicle side
Station connection
CCS2 charging-station cable. Provide the station brand and model; do not substitute a CCS1 description.
Vehicle connection
CHAdeMO vehicle inlet. Include model, year and market version so the correct direction can be reviewed.
Version and documentation
Share firmware information if known. Ask for instructions and any model-specific evaluation records relevant to your combination.
A practical matching checklist
- Identify both physical interfaces and the direction of charging.
- Record the station model and the vehicle model/year/market.
- Describe intended use, expected order quantity and sample destination.
- Agree the adapter version and required documentation before a sample order.
Confirm the exact configuration
Any additional electrical ratings, drawings and software support must be confirmed against the selected version. There is no all-vehicle compatibility, firmware or standards-compliance guarantee on this page. A product image is an exterior reference, not proof of a tested installation.
Before you order
Is the direction interchangeable?
No. This page concerns a CCS2 station connection to a CHAdeMO vehicle inlet. Other directions need their own selection.
What if I do not know the firmware?
Leave it unspecified in the request and provide the station and vehicle details you do have. Further matching questions can follow.
Are multiple current options one rating?
No. Any offered options must be confirmed separately for the selected adapter version; they are not simultaneous ratings.
Let’s define your requirements
Share your product direction, destination market and quantity. Discuss the configuration, documents and sample requirements with SUNFULL.
