4.5 m AC Charging Cable & Connector Configurations

One complete connector-and-cable assembly

Review the connector head, 4.5 m cable and unfinished cable end as one assembly. Select the required configuration before confirming the vehicle inlet, installation and cable specification.

The illustrated platform shows the complete connector, cap, cable coil and cable end. It does not establish exact photo binding for every configuration.

Compare the four configurations

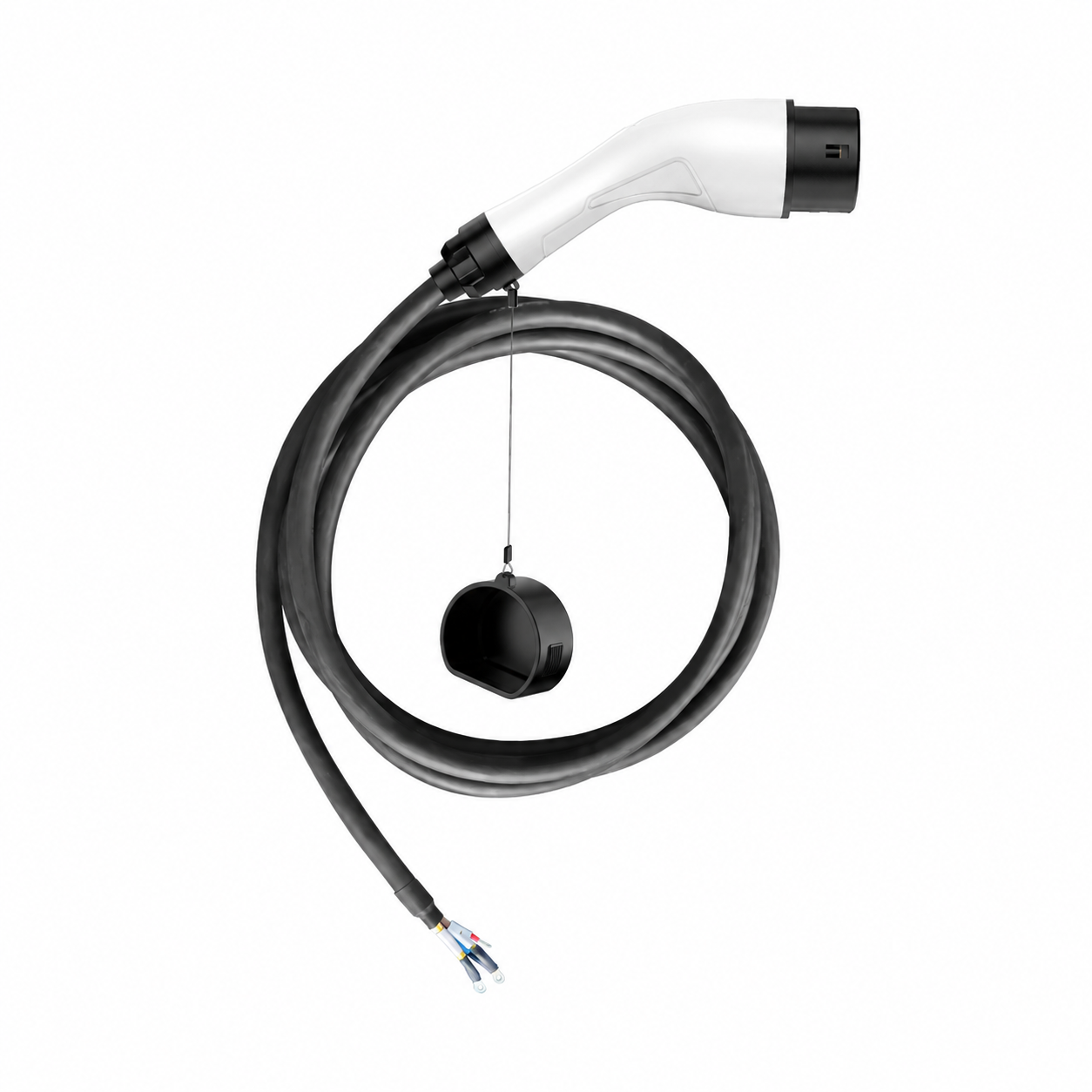

Complete white AC charging connector, coiled black cable, cap and unfinished cable end — Platform appearance illustration. Confirm the connector, cable specification and supplied assembly for the selected configuration.

Four source-listed cable configurations

These four cards reproduce the original configuration values in English, using the original product photographs. The first two records do not specify phase; only C03 and C04 are labelled three-phase.

C01 · 16 A · 4.5 m cable

Original connector and cable photograph for C01

Source label: European-standard AC connector
Listed current: 16 A
Phase: Not specified
Cable length: 4.5 m
Main conductor cross-section: 2.5 mm²
Cable construction: 3 × 2.5 + 1 × 0.75 mm²
Cable outer diameter: 13 mm
Assembly: Connector + 4.5 m cable
Diagram colour options: Black / white

C02 · 32 A · 4.5 m cable

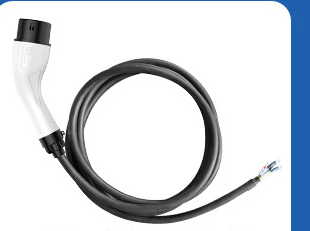

Original connector and cable photograph for C02

Source label: European-standard AC connector
Listed current: 32 A
Phase: Not specified
Cable length: 4.5 m
Main conductor cross-section: 6 mm²
Cable construction: 3 × 6 + 1 × 0.75 mm²
Cable outer diameter: 16 mm
Assembly: Connector + 4.5 m cable
Diagram colour options: Black / white

C03 · 16 A · Three-phase · 4.5 m cable

Original connector and cable photograph for C03

Source label: European-standard AC connector
Listed current: 16 A
Phase: Three-phase
Cable length: 4.5 m
Main conductor cross-section: 2.5 mm²
Cable construction: 5 × 2.5 + 1 × 0.75 mm²
Cable outer diameter: 16 mm
Assembly: Connector + 4.5 m cable
Diagram colour options: Black / white

C04 · 32 A · Three-phase · 4.5 m cable

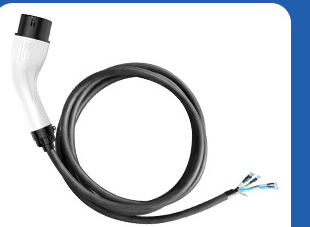

Original connector and cable photograph for C04

Source label: European-standard AC connector
Listed current: 32 A
Phase: Three-phase
Cable length: 4.5 m
Main conductor cross-section: 6 mm²
Cable construction: 5 × 6 + 1 × 0.75 mm²
Cable outer diameter: 20 mm
Assembly: Connector + 4.5 m cable
Diagram colour options: Black / white

The catalogue lists white for these four records. The original diagram also lists black / white; confirm colour availability rather than treating that as additional configurations. Cable length is 4.5 m, with the connector added to the assembly length.

Select the version to discuss

Cable configuration (optional)

Agree the sample and installation requirements

Identify the vehicle inlet and the charging-source connection.
Confirm the current option, phase label, conductor construction and cable diameter for the selected record.
Request drawings and relevant product documents, and agree sample checks before ordering.
Confirm colour, cable termination and installation requirements with a qualified installer.

No compatibility, certification or electrical performance is inferred from appearance alone. The shared catalogue voltage and power descriptions are not assigned to every configuration here.

4.5 m AC charging cable and connector
