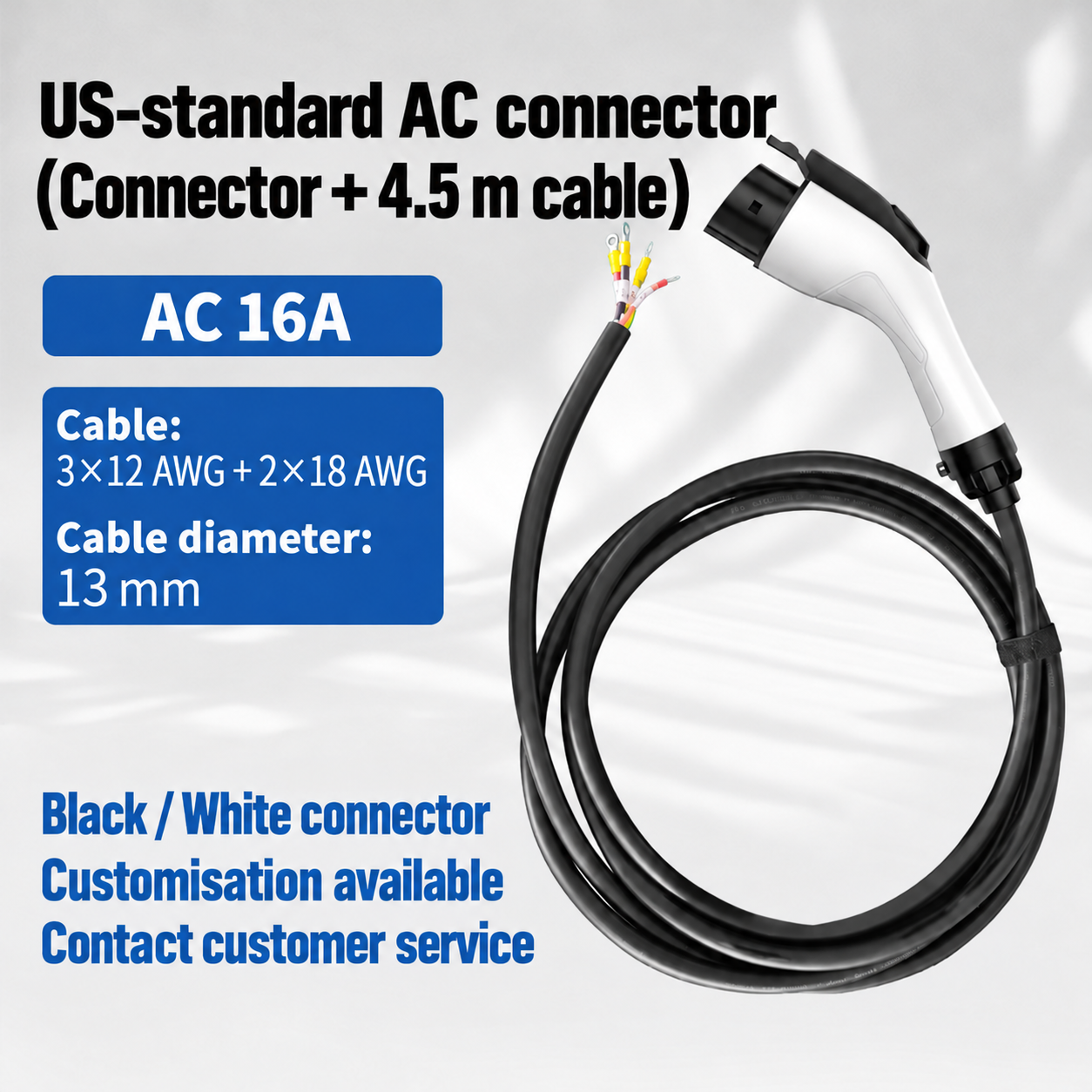

16A · 4.5 m
- Listed current
- 16A
- Cable length
- 4.5m
- Cable specification
- 3*12AWG+
2*18AWG - Cable diameter
- 13MM
- Listed colour
- White
FIVE-HOLE CONNECTOR · THREE LISTED ASSEMBLIES
The complete connector and cable, ready to compare

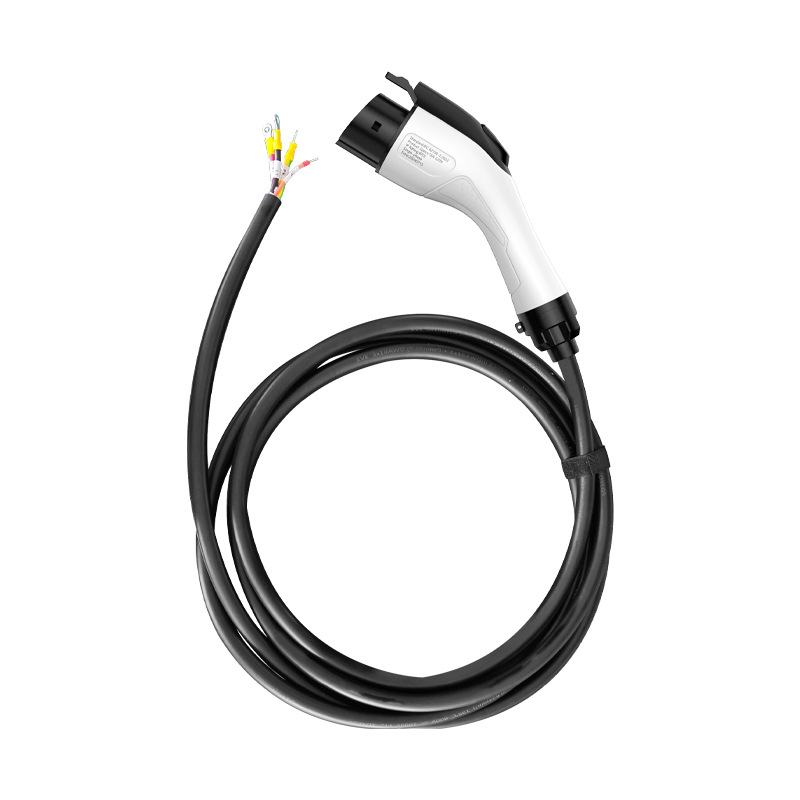

A white-handled AC charging connector with a coiled cable and open equipment-side conductors. Start with the listed current, then match the cable build and your equipment requirements.
Compare the three assemblies
Compare current, conductor specification and cable diameter
Three configuration records belong to one cable offer. The 32/40A record stays one combined option; it is not split into two additional models. The native records list white. The source artwork also illustrates black/white colour choices, which require a version-specific quotation.

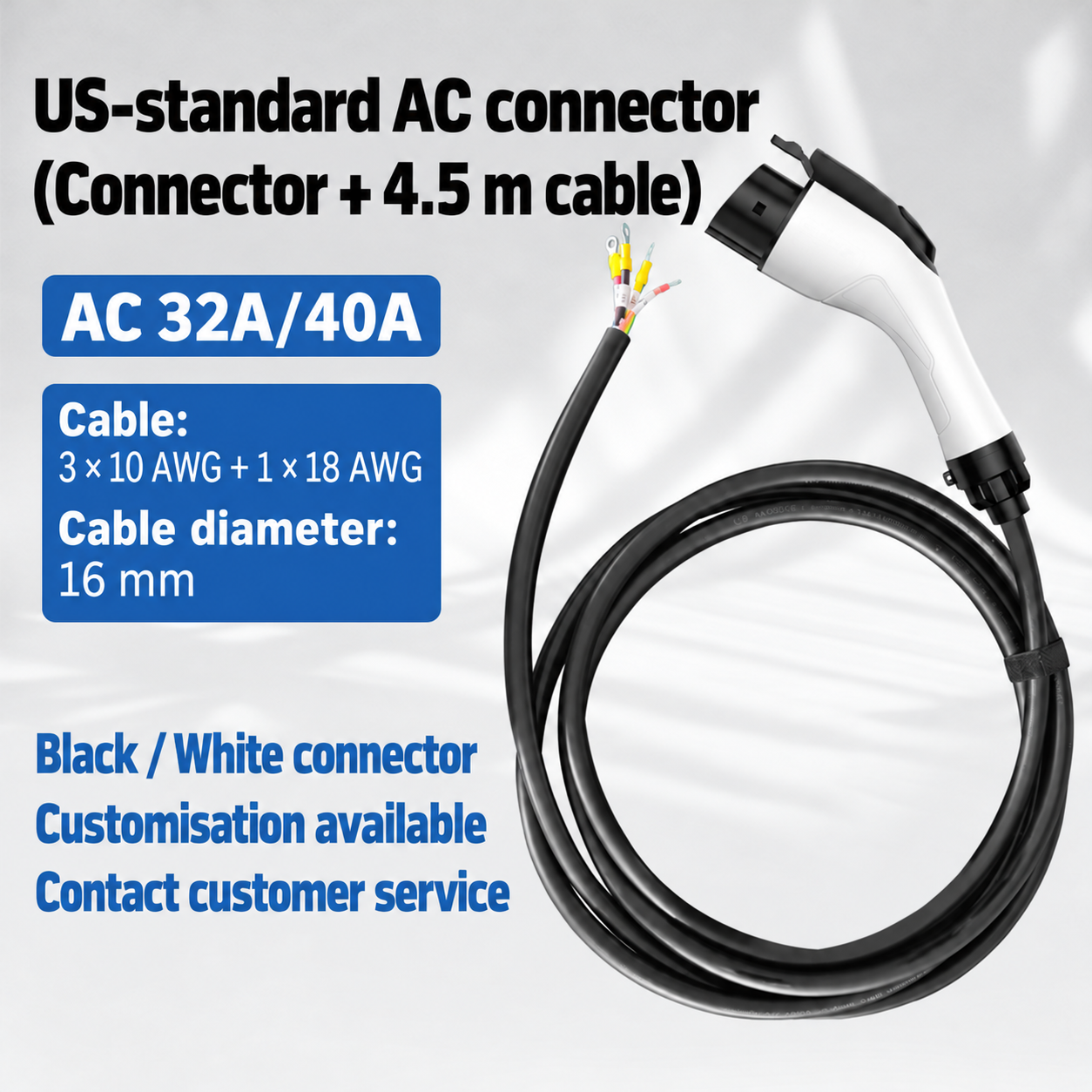

32/40A · 4.5 m
- Listed current
- 32/40A
- Cable length
- 4.5m
- Cable specification
- 3*10AWG+
1*18AWG - Cable diameter
- 16MM
- Listed colour
- White

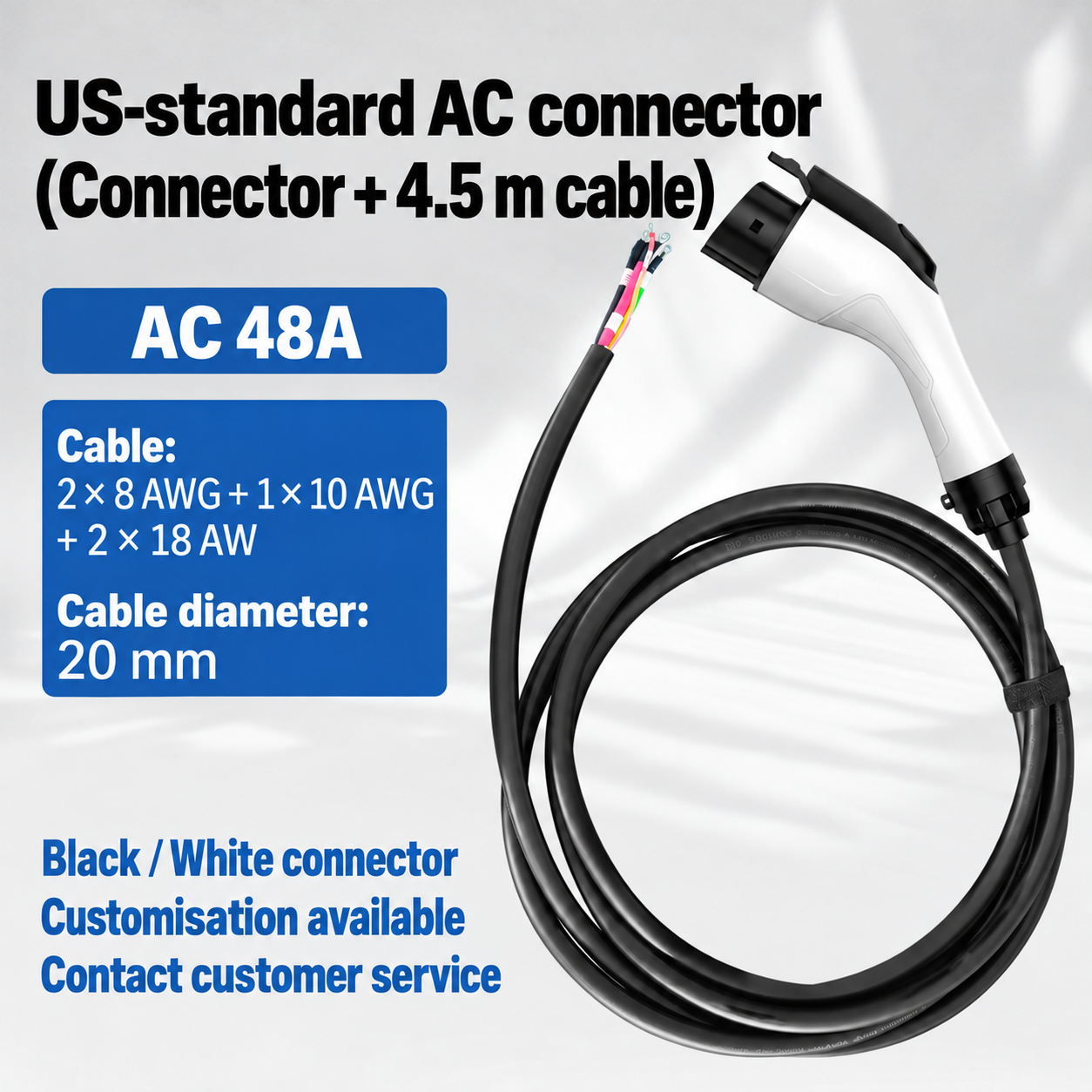

48A · 4.5 m
- Listed current
- 48A
- Cable length
- 4.5m
- Cable specification
- 2*8AWG+
1*10AWG+ 2*18AWG - Cable diameter
- 20MM
- Listed colour
- White
The 48A square artwork ends the final small-conductor label as 18AW. The separate comparison chart spells 18AWG; keep the selected cable specification with the quotation.
Source specifications for the cable offer
The values below are offer-level source attributes, separate from the three configuration names above. In particular, the source 32A / 7KW profile is not copied across the 16A and 48A records or recalculated into a new rating.
- Housing material
- PC
- Source-rated voltage
- AC220V
- Source-rated current
- 32A
- Source-rated power
- 7KW
- Protection level
- IP55
- Operating temperature
- -30℃～50℃
- Contact material
- Silver-plated copper alloy
Connector pin assignment, applicable standard version, phase and configuration-specific documents remain to be confirmed. Packaging weights are not presented as product net weights.
Inspect the connector and cable construction
Read the illustrated construction alongside the selected assembly. Request the applicable drawing, material specification and test documents when agreeing a sample.

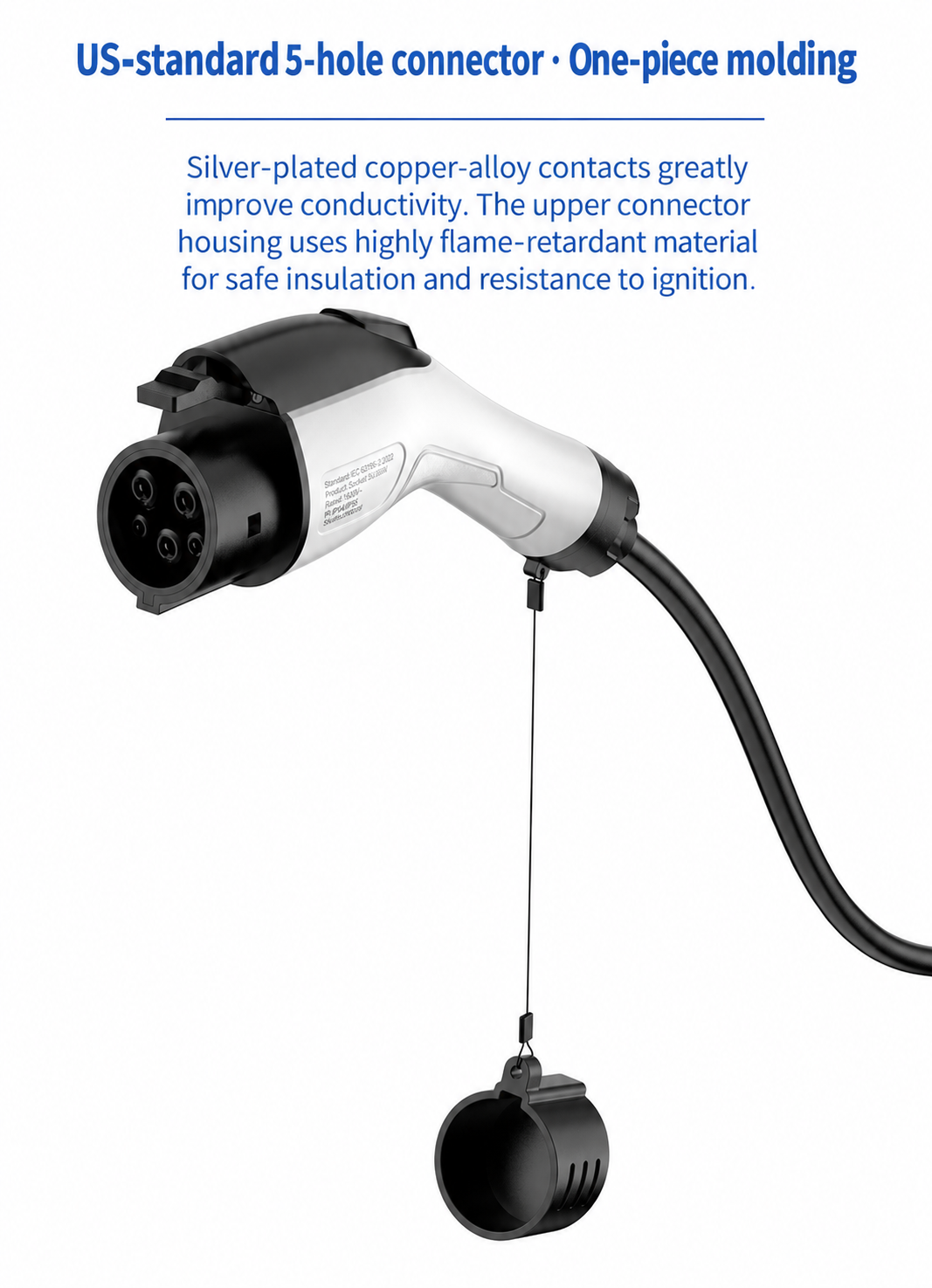

Five-hole connector construction

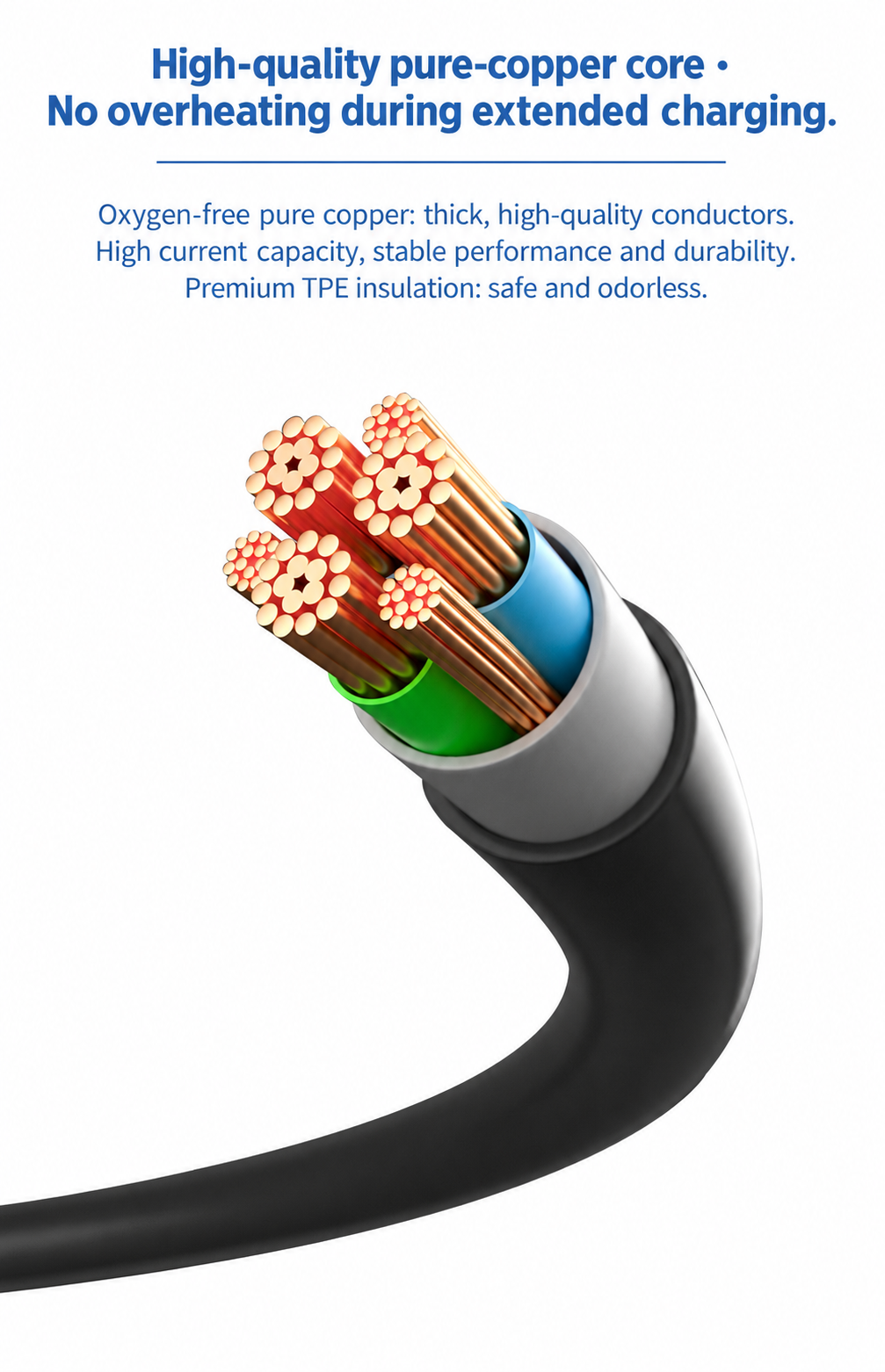

Copper conductors and TPE insulation
Keep the cable version in your sample request
- Choose 16A, the combined 32/40A record, or 48A.
- Confirm the 4.5 m cable build, diameter, colour and equipment-side termination.
- Match the vehicle inlet and charging equipment using version-specific drawings and instructions.
- Agree sample contents, documents, quantity and destination market.
