China-Standard AC Connector & 4.5m Cable

FOUR CONFIGURATIONS · ONE CLEAR COMPARISON

Choose the cable construction with the current marking

A connector with a 4.5 m cable, offered in four listed configurations. Compare 16A and 32A records, including two explicitly labelled three-phase versions, with their conductor areas and cable outside diameters.

All four native records list white. The configuration artwork also shows black / white options; agree the supplied colour with your quotation.

Compare all four configurations

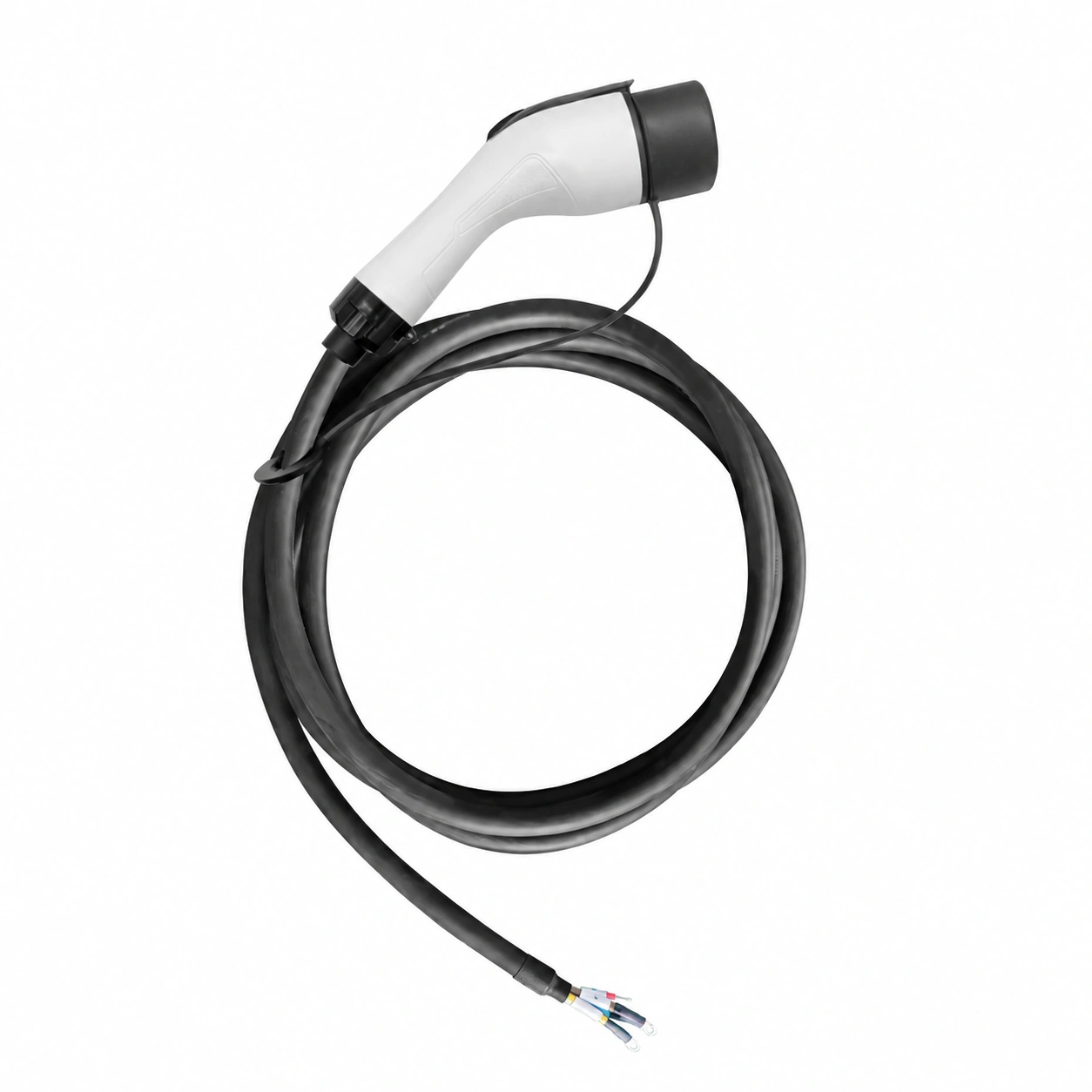

Complete connector-and-cable platform illustration. This fixed overview is not an exact photograph of each of the four configurations. View full-size illustration

Compare the four connector-and-cable configurations

The 4.5 m dimension describes cable length, rather than the complete assembly size. Phase is not stated for GC01 or GC02; only GC03 and GC04 are explicitly listed as three-phase.

GC01 · 16A · Phase not specified

Designation: Chinese national-standard designation
Assembly: AC connector + 4.5 m cable
Current marking: 16 A
Copper conductor area: 2.5 mm² copper conductor
Cable construction: 3*2.5+1*0.75
Colours shown in the artwork: Black / white
Cable outside diameter: 13 mm
Cable length: 4.5 m
Phase: Not specified
Power type: AC
Listed configuration colour: White

GC02 · 32A · Phase not specified

Designation: Chinese national-standard designation
Assembly: AC connector + 4.5 m cable
Current marking: 32 A
Copper conductor area: 6 mm² copper conductor
Cable construction: 3*6+1*0.75
Colours shown in the artwork: Black / white
Cable outside diameter: 16 mm
Cable length: 4.5 m
Phase: Not specified
Power type: AC
Listed configuration colour: White

GC03 · 16A · 3-phase

Designation: Chinese national-standard designation
Assembly: AC connector + 4.5 m cable
Current marking: 16 A
Copper conductor area: 2.5 mm² copper conductor
Cable construction: 5*2.5+1*0.75
Colours shown in the artwork: Black / white
Cable outside diameter: 16 mm
Cable length: 4.5 m
Phase: 3-phase
Power type: AC
Listed configuration colour: White

GC04 · 32A · 3-phase

Designation: Chinese national-standard designation
Assembly: AC connector + 4.5 m cable
Current marking: 32 A
Copper conductor area: 6 mm² copper conductor
Cable construction: 5*6+1*0.75
Colours shown in the artwork: Black / white
Cable outside diameter: 20 mm
Cable length: 4.5 m
Phase: 3-phase
Power type: AC
Listed configuration colour: White

Cable-construction notation is reproduced as listed. Confirm conductor roles, the required interface version and installation requirements using the selected configuration’s documentation and sample.

Keep cable conductors and connector contacts distinct

The configuration cards specify copper conductor area and cable construction. The offer separately lists silver-plated copper-alloy contacts and a PC housing. These describe different parts of the assembly.

Copper conductor and TPE cable illustration

The construction artwork describes an oxygen-free pure-copper conductor and a TPE jacket. It is a construction illustration, rather than a separate exact photograph for every configuration.

Compare a sample with the written specification

Match the conductor area, cable notation and outside diameter to GC01–GC04.
Check cable length, colour and the required connector interface version.
Request the applicable test documents and installation instructions for the quoted version.

Copper-conductor and TPE cable-construction illustration. Check the selected configuration against its specification and sample. View full-size illustration

Review the offer-level platform attributes

The following attributes describe the offer-level reference. In particular, 32A and 7KW are not assigned to every configuration; use each record’s current and phase above when specifying your request.

Housing material: PC
Offer-level reference voltage: AC220V
Working temperature: −30°C to 50°C
Contact material: Silver-plated copper alloy
Offer-level reference current: 32A
Offer-level reference power: 7KW
Protection level (offer attribute): IP55

“China-standard” is the source designation. A specific standard number, certification and vehicle compatibility are not stated here and should be confirmed for the selected version.

Check the package record for the version you select

Package weights differ by configuration. They are packing records, not product net weights. On a narrow screen, this table can be scrolled horizontally with touch or the keyboard.

Configuration	Current and phase	Package weight	Package L × W × H	Product net weight
GC01	16A · Phase not specified	1200 g	41 × 41 × 12 cm	Not specified
GC02	32A · Phase not specified	1800 g	41 × 41 × 12 cm	Not specified
GC03	16A · 3-phase	1800 g	41 × 41 × 12 cm	Not specified
GC04	32A · 3-phase	2600 g	41 × 41 × 12 cm	Not specified

Request one clearly specified connector-and-cable version

Choose GC01–GC04 and confirm the required current and phase.
Agree conductor area, cable construction, length and supplied colour.
Check the connector interface, sample and applicable documentation for your installation and market.
Confirm the packing list, quantity, branding and quotation.
